Splicing connector, inline with lever, 2-2, 0.2-4.0mm², 32A, 450V, 20pcs Features: Splicing wire connector designed for fast and secure connections of all conductor types: solid, fine-stranded, single strand or multi strand conductors. Compact design saves space in junction boxes. Transparent housing allows for easy visual inspection of the connection. Technical specifications: Number of…
Splicing connector with lever, 5x 0.5–6.0mm², 40A, 450V, 20pcs Features: Splicing wire connector designed for fast and secure connections of all conductor types: solid, fine-stranded, single strand or multi strand conductors. Compact design saves space in junction boxes. Transparent housing allows for easy visual inspection of the connection. Technical specifications: Number of connection…
Splicing connector with lever, 4x 0.5–6.0mm², 41A, 450V, 20pcs  Features: Splicing wire connector designed for fast and secure connections of all conductor types: solid, fine-stranded, single strand or multi strand conductors. Compact design saves space in junction boxes. Transparent housing allows for easy visual inspection of the connection.  Technical specifications: Number of connection…
Splicing connector with lever, 3x 0.5–6.0mm², 41A, 450V, 20pcs  Features: Splicing wire connector designed for fast and secure connections of all conductor types: solid, fine-stranded, single strand or multi strand conductors. Compact design saves space in junction boxes. Transparent housing allows for easy visual inspection of the connection.  Technical specifications: Number of connection…
Splicing connector with lever, 2x 0.5–6.0mm², 41A, 450V, 20pcs  Features: Splicing wire connector designed for fast and secure connections of all conductor types: solid, fine-stranded, single strand or multi strand conductors. Compact design saves space in junction boxes. Transparent housing allows for easy visual inspection of the connection.  Technical specifications: Number of connection…

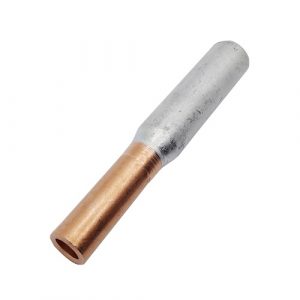

Bimetallic connector (link) Al+Cu, for 50+35mm² cables, 10 pcsFeatures: Designed to join aluminum sector conductors to conventional stranded copper conductors.Prefilled with jointing compound.Solid centre barrier.Friction welded.Specifications: Aluminium cable cross-section: 50.0mm².Copper cable cross-section: 35.0mm².Material: aluminium >/=99.5% + copper >/=99.9%.Surface: bright.Isolated: no.Length: 90mm.Aluminium connector depth: 42mm.Copper connector depth: 32mm.Inspection hole: no.Aluminium connector inner diameter: 9.5mm.Aluminium connector outer…
Bimetallic connector (link) Al+Cu, for 35+25mm² cables, 10 pcsFeatures: Designed to join aluminum sector conductors to conventional stranded copper conductors.Prefilled with jointing compound.Solid centre barrier.Friction welded.Specifications: Aluminium cable cross-section: 35.0mm².Copper cable cross-section: 25.0mm².Material: aluminium >/=99.5% + copper >/=99.9%.Surface: bright.Isolated: no.Length: 85mm.Aluminium connector depth: 42mm.Copper connector depth: 30mm.Inspection hole: no.Aluminium connector inner diameter: 8.5mm.Aluminium connector outer…
Bimetallic connector (link) Al+Cu, for 25+16mm² cables, 10 pcsFeatures: Designed to join aluminum sector conductors to conventional stranded copper conductors.Prefilled with jointing compound.Solid centre barrier.Friction welded.Specifications: Aluminium cable cross-section: 25.0mm².Copper cable cross-section: 16.0mm².Material: aluminium >/=99.5% + copper >/=99.9%.Surface: bright.Isolated: no.Length: 80mm.Aluminium connector depth: 35mm.Copper connector depth: 30mm.Inspection hole: no.Aluminium connector inner diameter: 7.0mm.Aluminium connector outer…
Bimetallic connector (link) Al+Cu, for 16+10mm² cables, 10 pcsFeatures: Designed to join aluminum sector conductors to conventional stranded copper conductors.Prefilled with jointing compound.Solid centre barrier.Friction welded.Specifications: Aluminium cable cross-section: 16.0mm².Copper cable cross-section: 10.0mm².Material: aluminium >/=99.5% + copper >/=99.9%.Surface: bright.Isolated: no.Length: 75mm.Aluminium connector depth: 35mm.Copper connector depth: 30mm.Inspection hole: no.Aluminium connector inner diameter: 6.0mm.Aluminium connector outer…

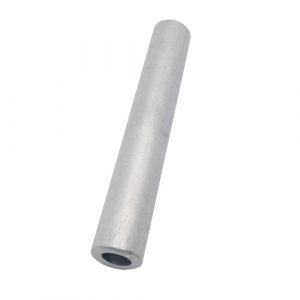

Aluminium connector for 50mm² cable, 10 pcs Features: Impermeable centre barrier to oil or moisture. Specifications: Cable cross-section: 50.0mm². Material: aluminium >/=99.5%. Surface: bright. Isolated: no. Length: 95mm. Depth: 35mm. Inspection hole: no. Inner diameter: 10mm. Outer diameter: 16mm. Set includes 10 pcs.
Aluminium connector for 35mm² cable, 10 pcs Features: Impermeable centre barrier to oil or moisture. Specifications: Cable cross-section: 35.0mm². Material: aluminium >/=99.5%. Surface: bright. Isolated: no. Length: 85mm. Depth: 35mm. Inspection hole: no. Inner diameter: 8.5mm. Outer diameter: 14mm. Set includes 10 pcs.
Aluminium connector for 25mm² cable, 10 pcs Features: Impermeable centre barrier to oil or moisture. Specifications: Cable cross-section: 25.0mm². Material: aluminium >/=99.5%. Surface: bright. Isolated: no. Length: 75mm. Depth: 32mm. Inspection hole: no. Inner diameter: 7mm. Outer diameter: 12mm. Set includes 10 pcs.
Aluminium connector for 16mm² cable, 10 pcs Features: Impermeable centre barrier to oil or moisture. Specifications: Cable cross-section: 16mm². Material: aluminium >/=99.5%. Surface: bright. Isolated: no. Length: 70mm. Depth: 30mm. Inspection hole: no. Inner diameter: 6mm. Outer diameter: 10mm. Set includes 10 pcs.

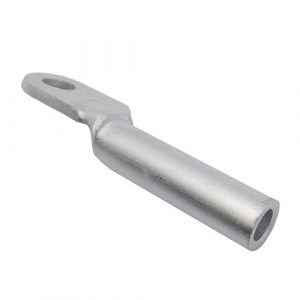

Aluminium lug for 50mm² cable, 10 pcs Features: The solid palm eliminates the ingress of moisture. The barrels are chemically treated to reduce contact resistance and corrosion. With stud hole, applicable bolts. Specifications: Cable cross-section: 50.0mm². Material: aluminium >/=99.5%. Surface: bright. Isolated: no. Length: 90mm. Depth: 40mm. Inspection hole: no. Inner…
Aluminium lug for 35mm² cable, 10 pcsFeatures: The solid palm eliminates the ingress of moisture.The barrels are chemically treated to reduce contact resistance and corrosion.With stud hole, applicable bolts.Specifications: Cable cross-section: 35.0mm².Material: aluminium >/=99.5%.Surface: bright.Isolated: no.Length: 85mm.Depth: 39mm.Inspection hole: no.Inner diameter: 8.7mm.Outer diameter: 14mm.Applicable bolts: 10.5mm.Outer width: 20mm.Set includes 10 pcs.
Aluminium lug for 25mm² cable, 10 pcsFeatures: The solid palm eliminates the ingress of moisture.The barrels are chemically treated to reduce contact resistance and corrosion.With stud hole, applicable bolts.Specifications: Cable cross-section: 25.0mm².Material: aluminium >/=99.5%.Surface: bright.Isolated: no.Length: 75mm.Depth: 35mm.Inspection hole: noInner diameter: 7.4mm.Outer diameter: 12mm.Applicable bolts: 8.5mm.Outer width: 18mm.Set includes 10 pcs.
Aluminium lug for 16mm² cable, 10 pcs Features: The solid palm eliminates the ingress of moisture. The barrels are chemically treated to reduce contact resistance and corrosion. With stud hole, applicable bolts. Specifications: Cable cross-section: 16.0mm². Material: aluminium >/=99.5%. Surface: bright. Isolated: no. Length: 70mm. Depth: 32mm. Inspection hole: no. Inner…

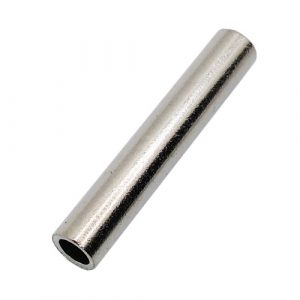

Copper connector, for 16mm² cable, 10 pcs Features: Made from pure electrolytic copper. Surface electro tin plated. Specifications: Cable cross-section: 16.0mm². Material: copper >/=99.9%. Surface treatment: electro tin plated. Isolated: no. Length: 35.0mm. Inspection hole: no Inner diameter: 5.8mm. Outer diameter: 7.5mm. Set includes 10 pcs.
