Description

Level Up Your PC with WiFi 6
High-Gain Wireless USB Adapter

Your Upgrade to WiFi 6
Forget about buying a new PC. TX20U Plus delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.

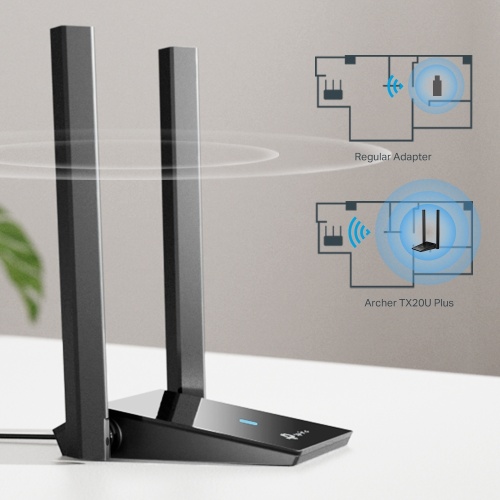

Coverage Powered by Beamforming
High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.

Escape the Congestion with MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.

Lower Your Ping with OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.

A Perfect Match for Faster Speeds
USB 3.0 ensures there’s no bottleneck between TX20U Plus and your PC.

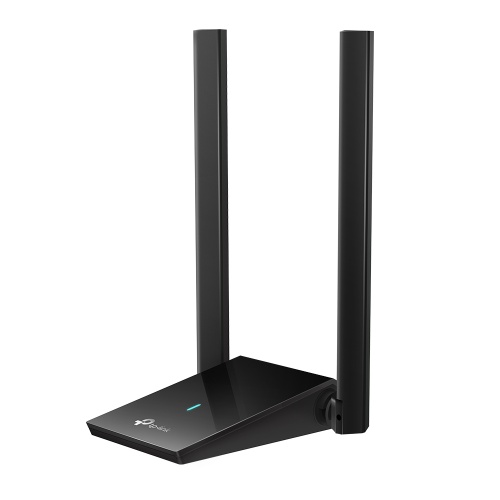

Adjustable, Multi-Directional Antennas
Rotate and adjust the antennas 180° for the best reception from any location.

Simple Design and Placement

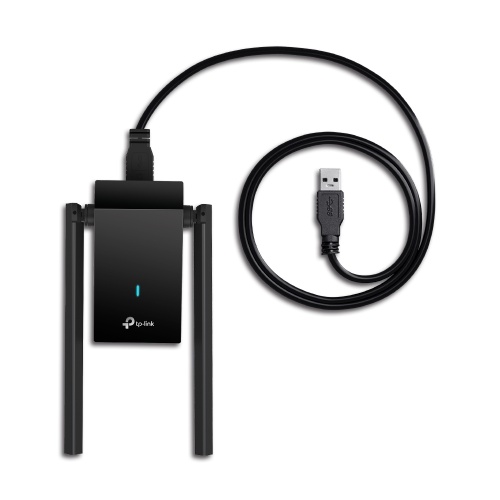

Find the best spot for network reception with TX20U Plus’s desktop-friendly design and 1-meter USB cable.

Package width 201.5 mm
Package depth 153 mm
Package height 46.5 mm
Package weight 230 g
Operating relative humidity (H-H) 10 – 90%
Storage relative humidity (H-H) 5 – 90%
Wi-Fi Yes
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Cables included USB
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Connectivity technology Wireless
USB version 3.2 Gen 1 (3.1 Gen 1)
Antenna type External
Product colour Black
Width 84 mm
Depth 156.3 mm
Height 19.2 mm
Operating temperature (T-T) 0 – 40 °C
Security algorithms WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Quick installation guide Yes
Host interface USB
LED indicators Status
Maximum data transfer rate
Sustainability compliance Yes
Internal No
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Component for PC
Interface WLAN
Antennas quantity 2
Wi-Fi band Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rates supported 11,54,300,400,574,867,1200 Mbit/s
Transmitting power (CE) 16 dBm
Transmitting power (FCC) 19 dBm
