Description

Quantity per pack 1 pc(s)
Certification CE, FCC
Package width 81.5 mm
Package depth 122.5 mm
Package height 38.5 mm
Package weight 60 g
Operating relative humidity (H-H) 10 – 90%
Storage temperature (T-T) -40 – 80 °C
Storage relative humidity (H-H) 5 – 90%
Product colour Metallic
Operating temperature (T-T) 0 – 70 °C
Harmonized System (HS) code 85369010
Input voltage 3.3 V
Maximum data transfer rate 1250 Mbit/s
Hot-swap Yes
Interface type SFP
Networking standards IEEE 802.3z
Compliance certificates RoHS
Fiber ethernet cabling technology 1000BASE

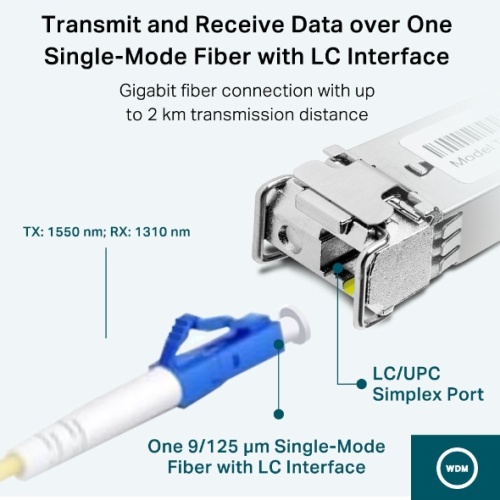

Fiber optic connector LC (UPC)
Maximum transfer distance 1000 m
SFP transceiver type Fiber optic
Multi-mode fiber (MMF) supported
Fiber cable diameters supported (core/cladding) 9/125 µm
Single-mode fiber (SMF) supported Yes
SFP transceiver standard BX

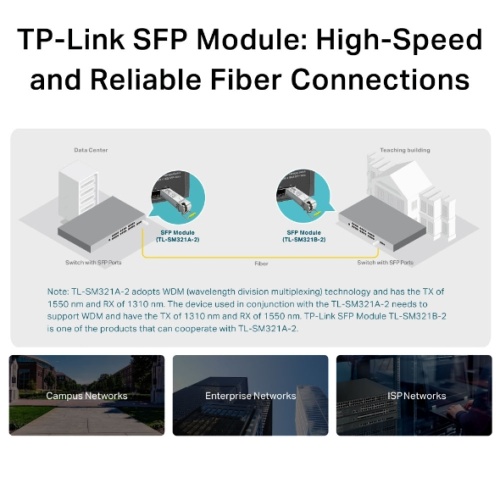

Wavelength-division multiplexing (WDM) Yes
Tx wavelength (max) 1550 nm
Rx wavelength (max) 1310 nm
