Description

Enjoy 4G LTE Sharing
Wherever You Want

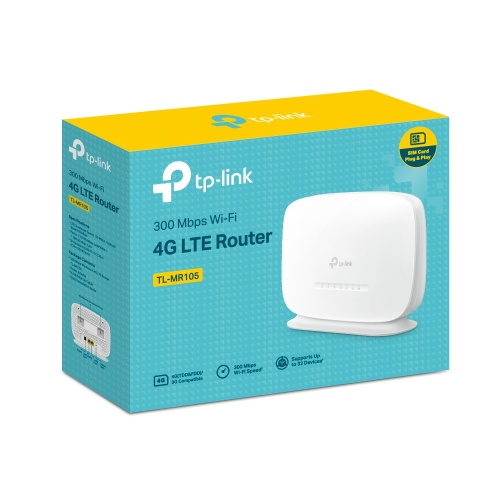

300 Mbps Wireless N 4G LTE Router

No Configuration Needed Simply Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a nano SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.

Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.

Advanced Software Functions Help You Enhance Your Network Safety and Effectiveness

Robust Parental Controls
If you want to block harmful websites, set surfing time limits, check which sites your kids are using or just pause the internet, you can do it all.

Guest Network
It provides separate Wi-Fi access for guests while securing the whole network.

Wi-Fi Where You Need It
Enjoy unconstrained convenience and versatility. TL-MR105 has been tested in the field for years to ensure universal compatibility with 2 internal LTE antennas to deliver a smooth connection. Simply plug in a nano SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.

Reliable Access for Up to 32 Devices Simultaneously

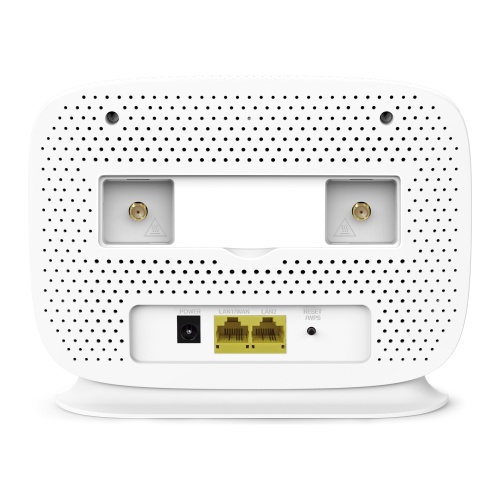

Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 2 LAN ports stand ready to provide internet for wired devices like desktop computers.

Product type Tabletop router
Operating relative humidity (H-H) 10 – 90%
Package type Box
Storage relative humidity (H-H) 5 – 90%
Ethernet LAN Yes
Cables included LAN (RJ-45)
USB port No
Ethernet LAN data rates 10,100 Mbit/s
Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN (RJ-45) ports 2
Top Wi-Fi standard Wi-Fi 4 (802.11n)
Product colour White
Width 174 mm
Depth 130 mm
Height 60 mm
Operating temperature (T-T) 0 – 40 °C
Security algorithms 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Quick installation guide Yes
Power source type DC
Sustainability compliance Yes
DC-in jack Yes
Mobile network generation 4G
SIM card type
4G standard LTE-TDD & LTE-FDD
Reset button Yes
3G standards DC-HSPA+, HSDPA, HSPA, UMTS
4G bands supported 800,850,900,1800,2100,2300,2500,2600 MHz
Ethernet WAN Yes
SIM card slot Yes
WAN connection type RJ-45
Wi-Fi band Single-band (2.4 GHz)
WLAN data transfer rate (max) 300 Mbit/s
Ethernet LAN interface type Fast Ethernet
