Description

PoE Switches for Your Ultra Convenience

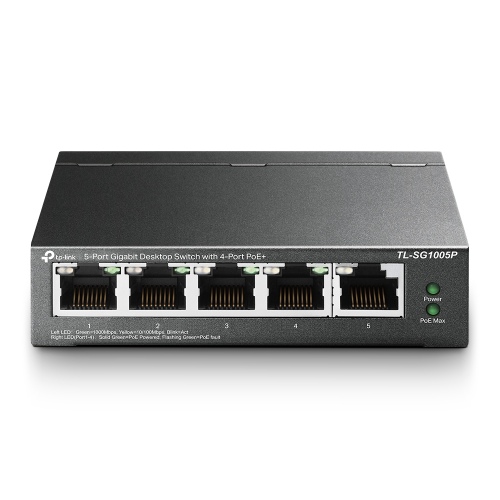

5-Port Gigabit Desktop Switch with 4-Port PoE

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Certification FCC, CE, RoHS
Package width 131 mm
Package depth 196 mm
Package height 121 mm
Package weight 761 g
Operating relative humidity (H-H) 10 – 90%
Package type Box
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 5 – 90%
Cables included AC
Quick start guide Yes
AC input voltage 100 – 220 V
AC input frequency 50 Hz
Power source DC/PoE
Product colour Black
Width 99.8 mm
Depth 98 mm
Height 25 mm
Operating temperature (T-T) 0 – 40 °C
Harmonized System (HS) code 85176990
User guide Yes
Input current 1.25 A
Manual
LED indicators Yes
Power consumption (max) 64.44 W
Sustainability compliance Yes
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
AC adapter included Yes
Switch type Unmanaged
Quality of Service (QoS) support Yes
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 5
