Description

What This Product Does

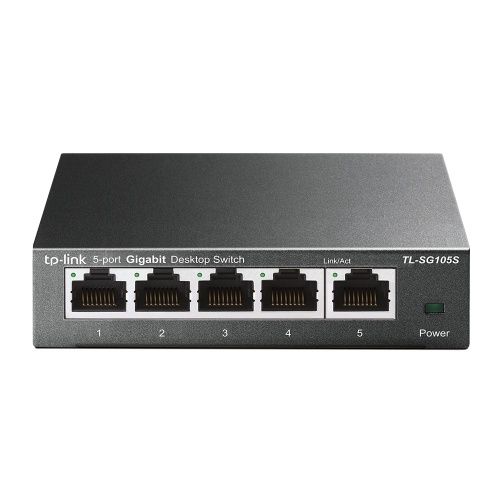

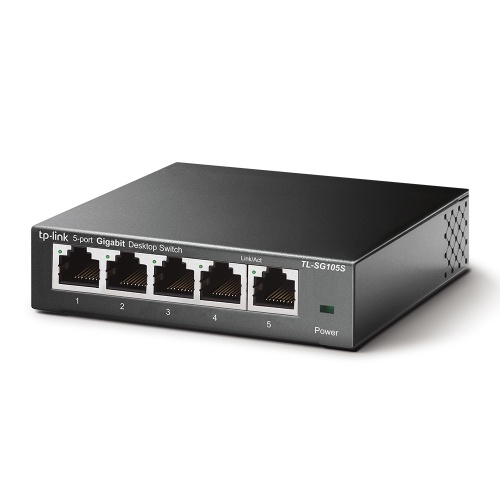

The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.

Certification CE, FCC, RoHS
Package width 107 mm
Package depth 192 mm
Package height 107 mm
Package weight 476 g
Operating relative humidity (H-H) 10 – 90%
Package type Box
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 5 – 90%
Cables included AC
AC input voltage 220 V
AC input frequency 50 Hz
Housing material Steel
Power source DC
Product colour Black
Width 100 mm
Depth 98 mm
Height 25 mm
Operating temperature (T-T) 0 – 40 °C
Harmonized System (HS) code 85176990
User guide Yes
Input voltage 5 V
Input current
Output current 0.6 A
Plug and Play Yes
LED indicators Yes
Power consumption (max) 2.3 W
Networking standards IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Output voltage 9 V
AC adapter included Yes
Wall mountable Yes
Switch type Unmanaged
Quality of Service (QoS) support Yes
