Description

Smarter Switching for Smarter Results

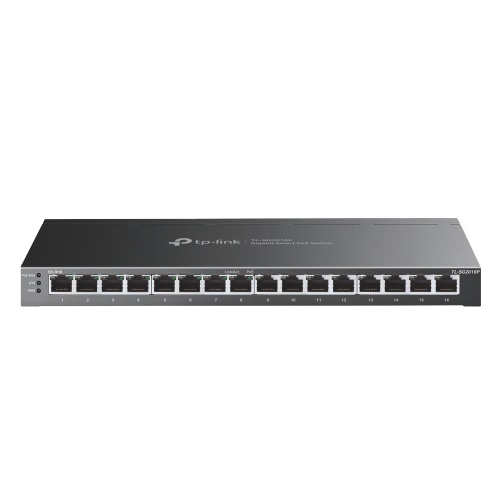

JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+

Multiple Application Scenarios
The TL-SG2016P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Power over Ethernet for Simplified Network Deployment
Features eight 802.3af/at compliant PoE+ ports, the switch supports up to 120 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Value-Added Features Bring Unexpected Experience
Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.

QoS for Lag-Free Experience
Designate the priority of traffic based on QoS, ensuring latency sensitive applications like voice and video, remain clear and lag-free.

VLAN for Security
Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Certification CE, FCC, RoHS
Package width 227 mm
Package depth 434 mm
Package height 70 mm
Package weight 1.94 kg
Operating relative humidity (H-H) 10 – 90%
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 5 – 90%
Ethernet LAN data rates 10,100,1000 Mbit/s
Housing material Metal
Power source DC/PoE
Product colour Black
Width 286 mm
Depth 111.7 mm
Height 25.4 mm
Operating temperature (T-T) 0 – 40 °C
Security algorithms EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
Input current 1.31 A
Manual Yes
Supported network protocols ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
LED indicators PoE, Power, System
Power consumption (max) 146.5 W
Networking standards
Web-based management Yes
Switch layer L2/L3/L4
Quality of Service (QoS) support Yes
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support Yes
Port mirroring Yes
Rate limiting Yes
