Description

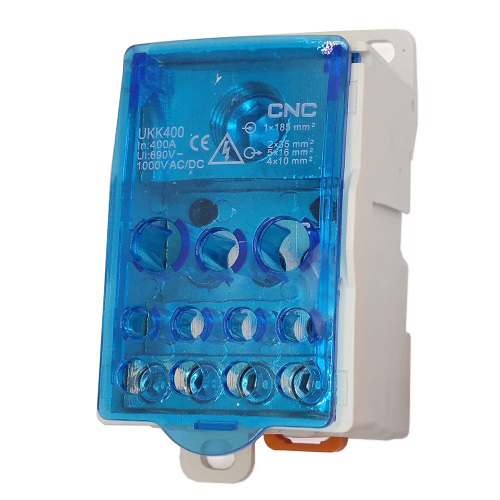

Unipolar junction box, 400A, with buckle

Features:
The electrical cable junction box is intended for cable connections or branches. Useful in electrical distribution systems.
Suitable in electrical panels, mounting on a Din rail.
Transparent cover allows you to check reliable cable connection.
The body is made of flame retardant material PA, resistant to high temperatures and with strong insulating properties. Terminals brass plated, strong, durable, corrosion resistant, with good conductivity.


Technical data:
Nominal current: 400 A.
Voltage: AC/DC 690-1000 V AIEC.
Cross-sectional area of the connected cables: 1x (95-185 mm²) / 2x (6-35 mm²) / 5x (2.5-16 mm²) / 4x (2.5-10 mm²).
Installation: on a DIN rail.
Terminals: brass plated.
Body material: PA nylon.
Safety class: V0 UL94 (flame retardant).
Dimensions: 49 x 95 x 49 mm.
