Dimensions

89.5mm × 89.5mm × 153.7mm

Colors

White

Antenna

Internal antennas

Network Port

2 × 10/100/1000 Mbps WAN/LAN auto-sensing port

Indicator

× 1

Mesh/reset Button

× 1

Power Port

× 1

Protocol Standards

IEEE 802.11a/b/g/n/ac，IEEE 802.3/3u/3ab

Band

2.4 GHz, 5 GHz

2.4 GHz Wi-Fi

300 Mbps (802.11ac)

5 GHz Wi-Fi

867 Mbps (802.11ac)

Operating System

MiWiFi ROM

Wi-Fi Encryption

WPA-PSK/WPA2-PSK/WPA3-SAE encryption

Management Applications

Supports Web, Mi Home/Xiaomi Home App (Android, iOS)

Working Environment Temperature

0 ~ 40°C

Operating Humidity

10% ~ 90% RH (non-condensing)

Storage Temperature

-40 ~ 70℃

Storage Humidity

5% ~ 90% RH (non-condensing)

Package Contents

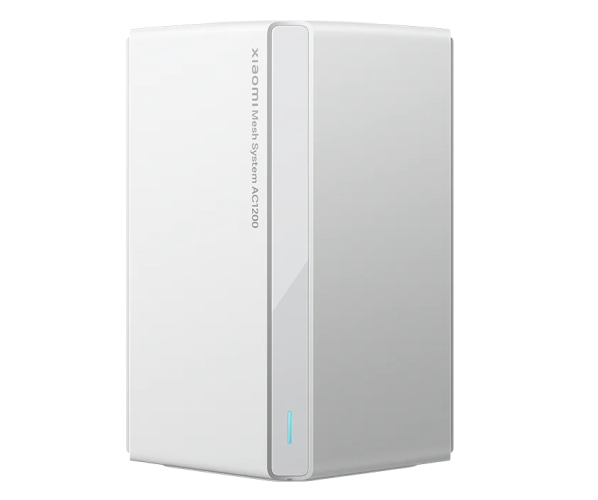

Xiaomi Mesh System AC1200 (1-pack):
Router × 1,
Power adaptor × 1,
Network cable × 1,
User manual × 1,
Warranty notice × 1
