Description

Certification EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
IEC 62471
EN 55022 (Class B); EN 55032 (Class B)
EN 55024
EN 61000-3-2
EN 61000-3-3
47 CFR Part 15, Subpart B, Class B
ICES-003 Issue 6, Class B
Operating relative humidity (H-H) 5 – 95%
Storage temperature (T-T) -40 – 70 °C
Cables included Micro-USB
Scanner type 1D/2D
Connectivity technology Wired
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 2400 mAh
International Protection (IP) code IP42

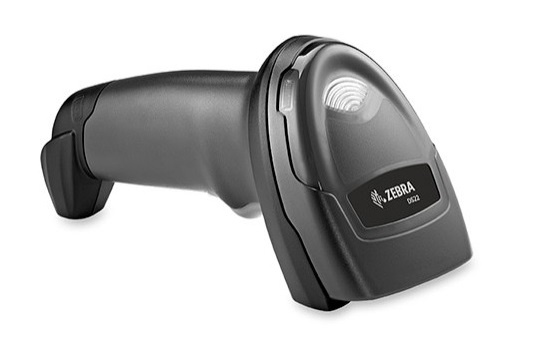

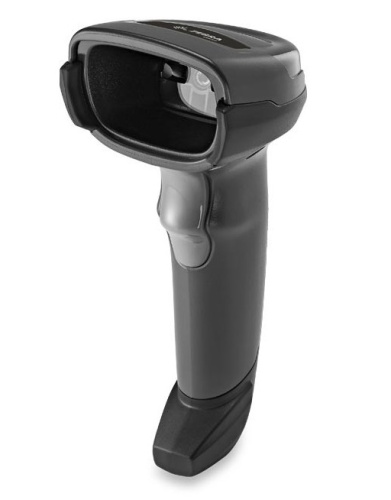

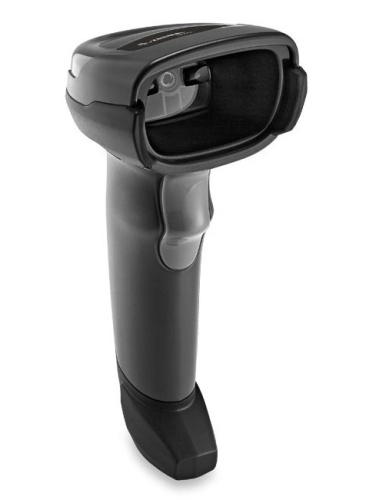

Type Handheld bar code reader
Product colour Black
Width 66 mm
Depth 99 mm
Height 165 mm
Weight 161.6 g
Operating temperature (T-T) 0 – 50 °C
Harmonized System (HS) code 84716070
Standard interfaces USB, RS-232, RS-485, Keyboard wedge
Wireless range 10 m
LED indicators Yes
Power source type DC
Power consumption 250 mA
Battery life
AC adapter output voltage 5 V
Sensor type LED
Working distance 36.8 cm
Wavelength 645 nm
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39
Pitch reading angle -65 – 65°
Yaw reading angle -65 – 65°
Motion tolerance (cm/s) 13
Tilt reading angle -65 – 65°
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C.
