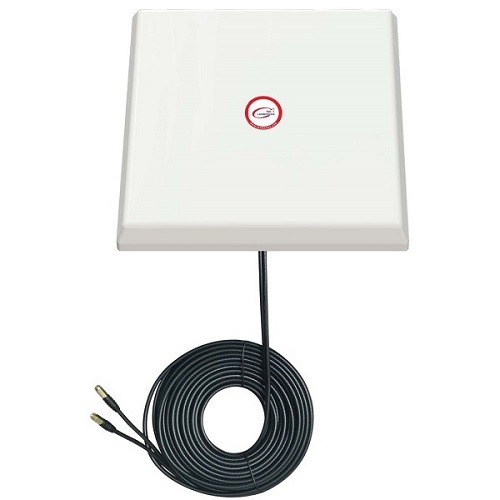

5G / LTE / CBRS 2x2MIMO Antenna, 1.7-3.8GHz, 2x 21dBi

5G / LTE / CBRS 2x2MIMO Antenna, 1.7-3.8GHz, 2x 21dBi

107,30 €

5 in stock
  • Disc Estimated Delivery : 1-2 business days
  • Disc Free Shippings : orders over €300
  • Disc Delivery by courier: €3.90
  • Disc Purchase option Only On-line
SKU: TV992270 Category: Brand:

LTE/5G/CBRS 2×2 MIMO antenna, 1710-2690MHz / 3300-3800MHz, 2x 21dBi, SMA-Male connector


Features:
Panel design, dual slant polarization antenna,1710-2690MHz / 3300-3800MHz, 2x 21dBi.
Application: LTE, 5G, CBRS, cellular networks, DAS (Distributed Antenna Systems), Wi-Fi IEEE802.11b/g/n.
With two 15m long cables.
Lightning protection: DC grounding.
Environmentally friendly.


Technical specification:
Frequency range: 1710-2690MHz / 3300-3800MHz.
Gain: 2x 21dBi.
VSWR: <2. Impedance: 50 ohms. Max. power per port: 50W. Connector: 2x SMA-male. Cables: 2x RG58 copper. Cable length: about 15m. Mounting: on a pole: diameter 30-50 mm. Material: PC, ABS. Dimensions: 400 x 400 x 50 mm. Polarization: dual slant +/-45°. Color: white. Weight: 2.5kg. Operating temperature: -40°C~ +70°C. Operating humidity: up to 95%RH.

Warranty: 24 months.
