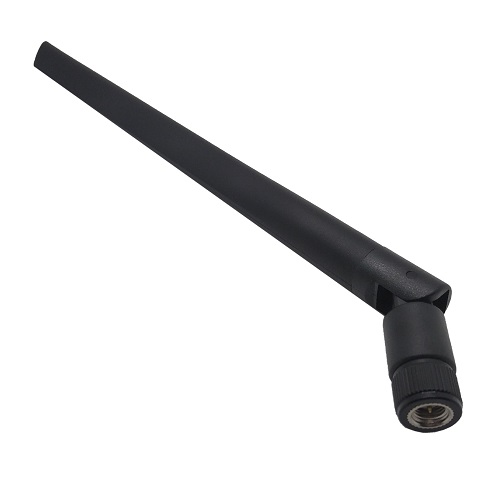

5G NR Antenna,617~960/1710~2690/3300~3800MHz, 3dBi, 18cm

5G NR antenna, 617~960 / 1710~2690 / 3300~3800 MHz, 3dBi, ~18cm


Features:
Linear polarization 5G NR antenna, 617~960 / 1710~2690 / 3300~3800 MHz, 3dBi, ~18cm.
5G New Radio access technology is designed to be the global standard for the air interface of 5G networks.
The antenna is straight and tilts up to 90 degrees.
Environmentally friendly, ROHS compliant.


Technical specification:
Frequency: 617~960 / 1710~2690 / 3300~3800 MHz.
Gain: 3 dBi.
VSWR: <3.0. Resistance: 50 ohms. Connection: SMA-male. Antenna dimention: 175x13x13 mm. Mounting: on the screw. Material: ABS. Linear polarization. Color: black. Operating temperature: -40°C~+85°C. Operating humidity: up to 95% RH.

Warranty: 24 months.
