SKU: ACFAN00329A
9,90 €

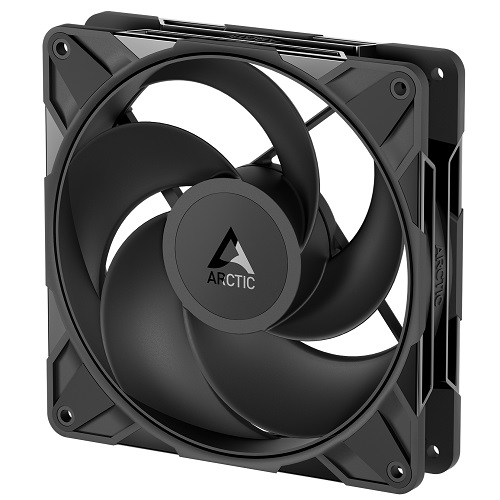

PWM Fan P14 Pro Reverse, 4-pin, 140mm, black
Features:
Reversed Airflow. The P14 Pro Reverse is specifically designed for air intake from the back side. It’s particularly suitable when conventional fans would compromise the aesthetics.
Efficient Performance at High Air Resistance. Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
PST – PWM-Based Synchronized Fan Control. An additional PWM connector allows multiple fans to be synchronized in series using a single header.
Maximum Performance. Revised fan blade design for an optimal balance of performance and smooth operation
Optimized Bearing-Shaft Design (FDB). A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
SOTA Microcontroller. Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
More Power – Less Noise. An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy.
Minimum Gap Dimensions for Maximum Efficiency. Enables higher static pressure and maximum airflow efficiency.
Specifications:
Fan speed: 400-2650 RPM PWM controlled, 0 rpm below 5 % PWM.
Air flow: 98 CFM / 166.5 m³/h.
Static pressure: 5.1 (mm / H2O).
Fan bearing: Fluid Dynamic Bearing.
Current / voltage: 0.4A / 12V DC.
Connection: 4-Pin Fan Plug + 4-Pin Socket.
Cable length: 400 mm + 80 mm Daisy-Chain Cable.
Size: 140x140x30 mm.
Color: black.
Weight: 248 g.
Warranty: 6 years.
