Automatic Transfer Switch CNC 2P 220V 100A

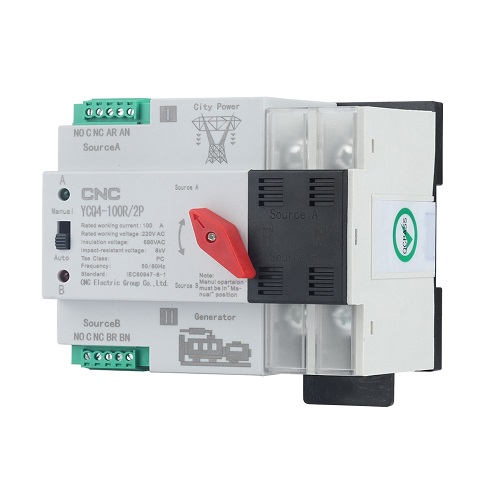

Automatic transfer switch YCQ4-100R/2P 220V 100A


Features:
Automatic transfer switch 220VAC, 100A for emergency power supply system 50/60Hz, transfer time <50ms. The switch can also be operated manually. The switch complies requirements of low voltage switch gear and control gear specified by IEC 60947-6-1. Compact design, reliable switching, easy installation on a DIN rail. It is widely applicable in various occasions where continuous power failure is not allowed.

Specifications:
Voltage: AC220V.
Current: 100A.
Frequency: 50/60Hz.
Number of contacts: 2.
Insulation voltage (Ui): AC 690V.
Rated voltage (Ue): AC 400V.
Rated conditional short-circuit current: 50 kA.
SCPD (fuse): RT16-00-63A.
Rated impulse withstand voltage: 8 kV.
Main voltage: AC 220V.
Auxiliary circuit: AC 220V.
Contact transfer time: <50 ms. Operating transfer time: <50ms. Return transfer time: <50ms. Off- time: <50ms. Installation: on a DIN rail. Dimensions: 108x96x76 mm. Mechanical life: 5000 times. Electrical life: 2000 times. Weight: 560g.

Warranty: 24 months.
