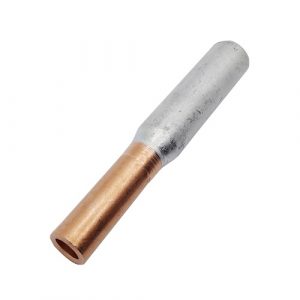

Bimetallic connector (link) Al+Cu, for 35+25mm² cables, 10 pcsFeatures: Designed to join aluminum sector conductors to conventional stranded copper conductors.Prefilled with jointing compound.Solid centre barrier.Friction welded.Specifications: Aluminium cable cross-section: 35.0mm².Copper cable cross-section: 25.0mm².Material: aluminium >/=99.5% + copper >/=99.9%.Surface: bright.Isolated: no.Length: 85mm.Aluminium connector depth: 42mm.Copper connector depth: 30mm.Inspection hole: no.Aluminium connector inner diameter: 8.5mm.Aluminium connector outer…

Bimetallic connector (link) Al+Cu, for 25+16mm² cables, 10 pcsFeatures: Designed to join aluminum sector conductors to conventional stranded copper conductors.Prefilled with jointing compound.Solid centre barrier.Friction welded.Specifications: Aluminium cable cross-section: 25.0mm².Copper cable cross-section: 16.0mm².Material: aluminium >/=99.5% + copper >/=99.9%.Surface: bright.Isolated: no.Length: 80mm.Aluminium connector depth: 35mm.Copper connector depth: 30mm.Inspection hole: no.Aluminium connector inner diameter: 7.0mm.Aluminium connector outer…

Bimetallic connector (link) Al+Cu, for 16+10mm² cables, 10 pcsFeatures: Designed to join aluminum sector conductors to conventional stranded copper conductors.Prefilled with jointing compound.Solid centre barrier.Friction welded.Specifications: Aluminium cable cross-section: 16.0mm².Copper cable cross-section: 10.0mm².Material: aluminium >/=99.5% + copper >/=99.9%.Surface: bright.Isolated: no.Length: 75mm.Aluminium connector depth: 35mm.Copper connector depth: 30mm.Inspection hole: no.Aluminium connector inner diameter: 6.0mm.Aluminium connector outer…

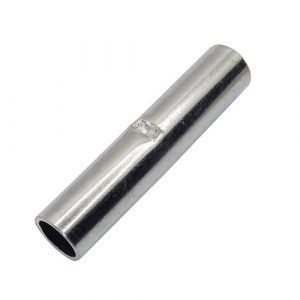

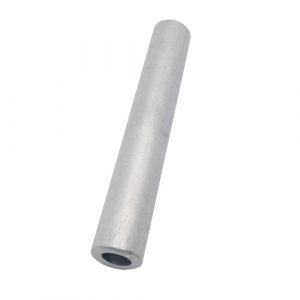

Aluminium connector for 25mm² cable, 10 pcs  Features:  Impermeable centre barrier to oil or moisture.  Specifications:  Cable cross-section: 25.0mm². Material: aluminium >/=99.5%. Surface: bright. Isolated: no. Length: 75mm. Depth: 32mm. Inspection hole: no. Inner diameter: 7mm. Outer diameter: 12mm. Set includes 10 pcs.

Aluminium connector for 16mm² cable, 10 pcs  Features:  Impermeable centre barrier to oil or moisture.  Specifications:  Cable cross-section: 16mm². Material: aluminium >/=99.5%. Surface: bright. Isolated: no. Length: 70mm. Depth: 30mm. Inspection hole: no. Inner diameter: 6mm. Outer diameter: 10mm. Set includes 10 pcs.

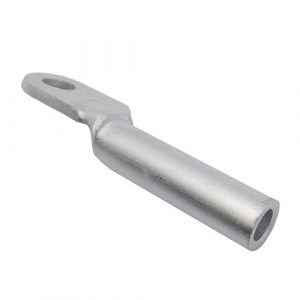

Aluminium lug for 50mm² cable, 10 pcs  Features:  The solid palm eliminates the ingress of moisture. The barrels are chemically treated to reduce contact resistance and corrosion. With stud hole, applicable bolts.  Specifications:  Cable cross-section: 50.0mm². Material: aluminium >/=99.5%. Surface: bright. Isolated: no. Length: 90mm. Depth: 40mm. Inspection hole: no. Inner…

Aluminium lug for 16mm² cable, 10 pcs  Features:  The solid palm eliminates the ingress of moisture. The barrels are chemically treated to reduce contact resistance and corrosion. With stud hole, applicable bolts.  Specifications:  Cable cross-section: 16.0mm². Material: aluminium >/=99.5%. Surface: bright. Isolated: no. Length: 70mm. Depth: 32mm. Inspection hole: no. Inner…

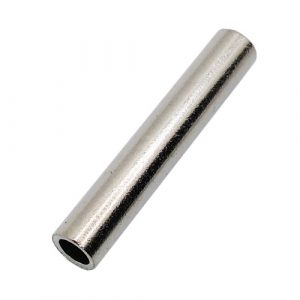

Copper connector, for 16mm² cable, 10 pcs  Features:  Made from pure electrolytic copper. Surface electro tin plated.  Specifications:  Cable cross-section: 16.0mm². Material: copper >/=99.9%. Surface treatment: electro tin plated. Isolated: no. Length: 35.0mm. Inspection hole: no Inner diameter: 5.8mm. Outer diameter: 7.5mm. Set includes 10 pcs.

Copper connector, for 10mm² cable, 10 pcs  Features:  Made from pure electrolytic copper. Surface electro tin plated.  Specifications:  Cable cross-section: 10.0mm². Material: copper >/=99.9%. Surface treatment: electro tin plated. Isolated: no. Length: 30.0mm. Inspection hole: no Inner diameter: 5.1mm. Outer diameter: 6.7mm. Set includes 10 pcs.
