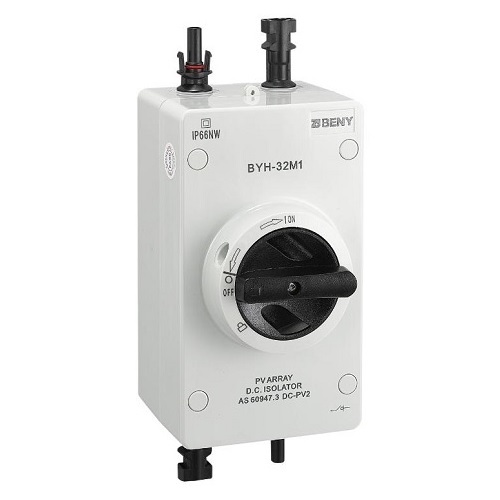

DC Isolator Switch – 2P, 32A, 1000VDC, MC4, IP66

DC isolator switch for disconnecting the DC circuit and controlling the PV installation; up to 1000V / 32A, with handle, with valve, for safe use and maintenance.
Can be widely used in residential and commercial solar PV systems.
It is the first DC switch compliant with AS 60947.3:2018 DC-PV2 standards and can be used worldwide in PV DC systems.
Features:
2 poles, 1000V DC, 32A.
No polarity.
Fire retardant and UV resistant.
The switch is locked in the off position.
Arcing time less than 3ms, that make PV solar system effectively disconnected.
A breathing valve shall be attached on the DC isolator.
Pre-wired MC4 in factory avoid the loose wiring or failure installation.
The DC isolator switch is wired with MC4 for faster and safer installation.
Certificates: IEC/EN 60947-3, AS/NZS 5033:2014; DC-21B, DC-PV2.


Technical data:
Number of contacts: 2.
Rated voltage (Ue): DC 1000V.
Insulation voltage (Ui): DC 1200V.
Rated current (In): 16A/ 25A/ 32A.
Maximum current: 32A.
Rated impulse voltage (Uimp): 8kV.
Mechanical life: 15000 cycles.
Electrical life: 1000 cycles.
Connection type: M4 (min. 1.2Nm, max. 1.8Nm).
Wire cross-sectional area: max. 4-16mm2.
Disconnection time: <3ms. Protection class: IP66 for housing, IP20 for switch. Dimensions: 188x99x108 mm. Operating temperature: -40°C to 85°C.

Warranty: 24 months.
