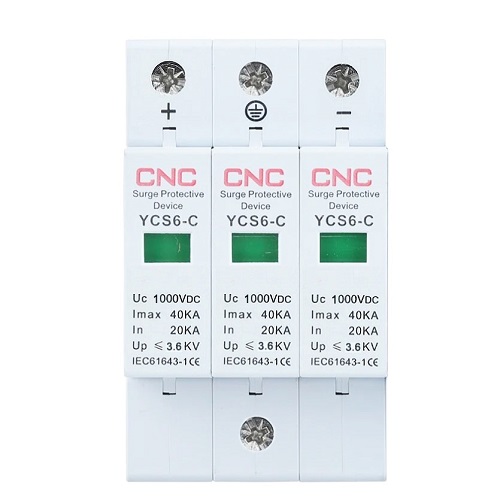

DC Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC

DC Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC

36,60 €

5 in stock
  • Disc Estimated Delivery : 1-2 business days
  • Disc Free Shippings : orders over €300
  • Disc Delivery by courier: €3.90
  • Disc Purchase option Only On-line
SKU: NV821747 Category: Brand:

Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC

Features:
Widely used in induction thunder and influence of direct lightning or other transient overvoltage surge protection, to protect DC power system, photovoltaic system, wind power generation and other industrial DC power equipment safe to use.
Standards: IEC 61643-1, CE.


Specifications:
Number of contacts: 3.
Class: C.
Maximum continuous operating voltage (Uc): 1000V DC.
Maximum discharge current (Imax): 40 kA.
Nominal discharge current (In): 20 kA.
Voltage protection level (Up): < / = 3.6 kV. Response time: <25 ns. Frequency: 50/60 Hz. Operating temperature: -40°C to +85°C. Relative humidity (at 25°C): <95%. Installation: on DIN rail (35mm). Wires cross-section: 4-6 mm². Dimensions: 54 x 90 x 67 mm.

Warranty: 24 months.
