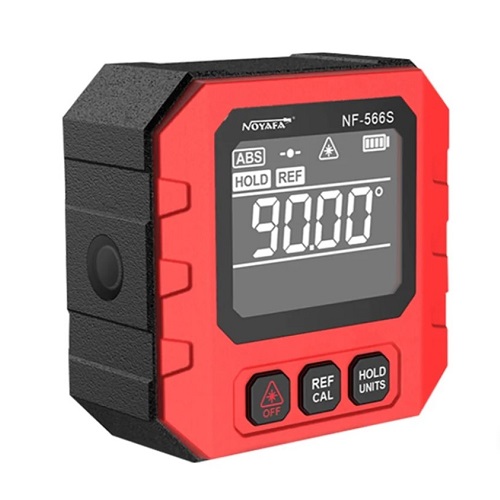

Digital Display Laser Inclinometer

Digital Display Laser Inclinometer

Features:
High precision angle measuring tool.
The inclinometer has become an indispensable and important measuring tool in the fields of bridge, railway paving, civil engineer, construction, decoration, industrial automation, intelligent platform, machining and so on.
Bidirectional laser scanning.
The bright (Class 2) laser point of the meter will be easily noticeable in both light and dark hours of the day, making it easy to measure the required data.
Magnetic pressure seat: five sides of the device are magnetic.
Clear illuminated display with battery level indicator.
Rechargeable lithium-ion battery, convenient charging via USB Type-C interface. Charging cable is included.
Compact shape, easy to use, durable body.
Warning: laser radiation – avoid direct eye exposure.


Functions:
Zero point measurement based on horizontal plane.
Angle locking function.
Relative/absolute angle measurement.
Battery level indicator.
With data storage function.


Technical data:
Measurement range: 4x 90°.
Measurement accuracy +/- 2°.
Measurement resolution: 0.02.
Sensor type: 6 axis sensor.
Laser class: II, 630-670nm.
Laser color: red.
Power supply: rechargeable lithium-ion battery 3.7V 390mAh.
Operating temperature: 0°C ~ +50°C.
Automatic device switch-off: 30 min.
Material: ABS, magnet.
Size: 60x60x30mm.
Weight: 118 g.


Warranty: 24 months.


The set includes: inclinometer, built-in battery, charging cable USB Type-A to USB Type-C, user manual.
