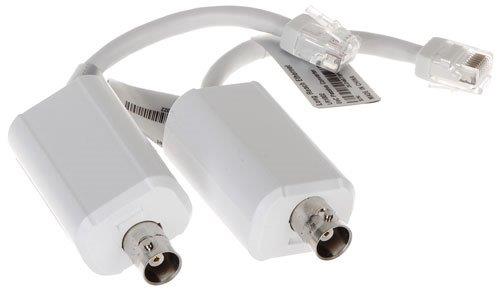

EoC Passive Converter LR1002

Features:• Supports IEEE802.3, IEEE802.3u standards• Port: 1*RJ45 10/100Mbps, 1*BNC• Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps • Supports MDI/MDIX self-adaption• Supports long range power supply transmission via coaxial cableTechnical Specifications:• Function Port 1*10/100 Mbps Base-TX• 1*BNC• Power Consumption <1W• Transmission Bandwidth RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps• PoE Protocol - (Based on the power input from the ePoE switch)• Network Standard IEEE802.3, IEEE802.3u• Lightning Protection Common Mode 6KV• Differential Mode 2KV• Operating Temperature -40°C-60°C• Operating Humidity 0%~95%• Weight 28.3g• Dimension (W×D×H) 56mm×27mm×21mm
