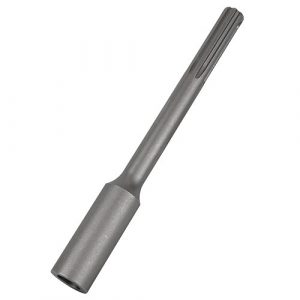

SDS-Max Ground Rod Driver, 22.5mm Features: Function: driving common ground rods for electrical circuits into the soil, bottom drill deep. For use in grounding and lightning systems. Compatible with SDS-Max system rotary hammers and hammer drills. Specifications: Shank type: SDS-Max. Length: 250mm. Inner (rod) diameter: 22.5mm. Suitable ground rod: M22 D-20mm.

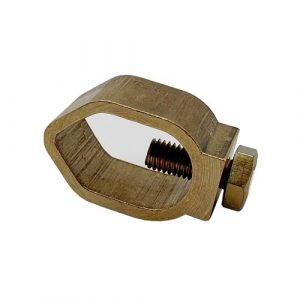

Earth clamp 25mm Features: Earthing clamp with fixing screw, made of brass. Bolt thread 25mm, hexagonal head hex 14mm. Bolt strength class is 4.8. Function: connecting ground rod to ground cable. Screw type 25mm. For use in grounding and lightning systems. Specifications: Material: brass. Screw type: 25mm. Head: hex 14mm. Bolt…

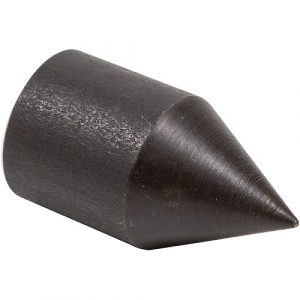

Drilling head M22Features: Drilling head made from high strength steel alloy, inside thread and thread of ground rod stick together, can effectively protect the ground rod in a deep hurt.Used for ground rod bottom drill deep.Connection is threaded, screw type M22.For use in grounding and lightning systems.Specifications: Material: steel.Rod diameter: 20mm.Thread type: M22.Length: 44mm.Outer diameter:…

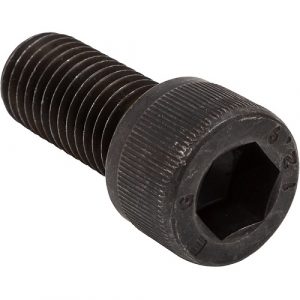

Driving Head, M22Features: Driving head, steel. Full-threaded bolt with internal hexagon screw.Bolt grade 12.9, made of high strength steel alloy, reusable. Suitable for heavy-duty construction, metal-to-metal bolting, have high tensile and yield strength. It has excellent stability at high or low temperatures and provides resistance from various chemical and physical reactions.The driving head is used…

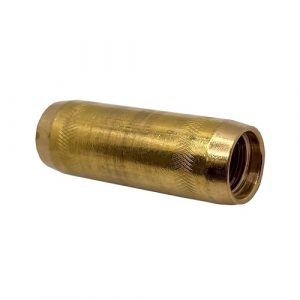

Coupling M22Features: Coupling made from high strength copper alloy, can protect the ground rod thread into the underground without damage and slow down the corrosion.Used for connecting rod and rod, rod and driving head. According to the need can increase the length of the rod.Connection is threaded, screw type M22.For use in grounding and lightning…

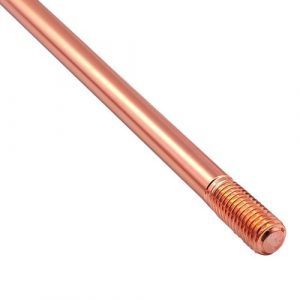

Copper Clad Steel Ground Rod, Pointed, 20mm x 1.5mFeatures: Copper clad steel earth rod, 20mm diameter, 150cm long, onepointed end, two threaded ends, pure copper layer thickness: 254 microns.Both threaded ends are compatible with screw standard M22.For use in grounding and lightning systems.Specifications: Material: copper clad steel.Copper purity: 99.9%.Copper thickness: >/=0.254mm.Length: 1500mm.Diameter: 20mm.Straightness error:

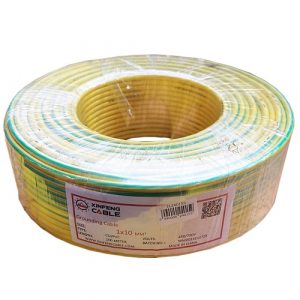

Grounding Cable, 10 mm² Features: Insulated copper conductor IEC 60227 compliant, stranded circular (class 1). For use in grounding and lightning systems. Specifications: Cable cross-section: 10.0mm². Material: copper. Isolation: PVC. Voltage grade: 450/750V. Length: 100m. Weight: 11.4kg.

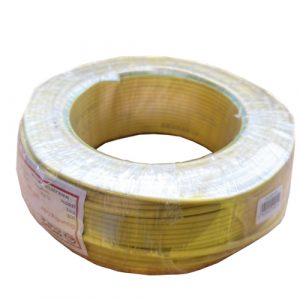

Grounding Cable, 6 mm²Features: Insulated copper conductor IEC 60227 compliant, stranded circular (class 1).For use in grounding and lightning systems.Specifications: Cable cross-section: 6.0mm².Material: copper.Isolation: PVC.Voltage grade: 450/750V.Length: 100m.Weight: 6.6kg.

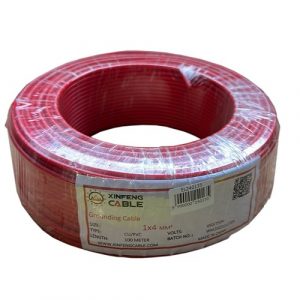

Grounding Cable, 4 mm² Features: Insulated copper conductor IEC 60227 compliant, stranded circular (class 1). For use in grounding and lightning systems. Specifications: Cable cross-section: 4.0mm². Material: copper. Isolation: PVC. Voltage grade: 450/750V. Length: 100m. Weight: 4.6kg.
SDS-Max Ground Rod Driver, 19.05mmFeatures: Function: driving common ground rods for electrical circuits into the soil, bottom drill deep.For use in grounding and lightning systems.Compatible with SDS-Max system rotary hammers and hammer drills.Specifications: Shank type: SDS-Max.Length: 250mm.Driver outer diameter: 30mm.Inner (rod) diameter: 19.05mm.Depth: 75mm.

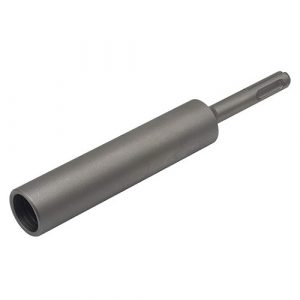

SDS-Plus Ground Rod Driver, 19.05mm Features: Function: driving common ground rods for electrical circuits into the soil, bottom drill deep. For use in grounding and lightning systems. Compatible with SDS-Plus system rotary hammers and hammer drills. Specifications: Shank type: SDS-Plus. Head diameter: 10mm. Length: 170mm. Driver outer diameter: 25mm. Inner (rod)…

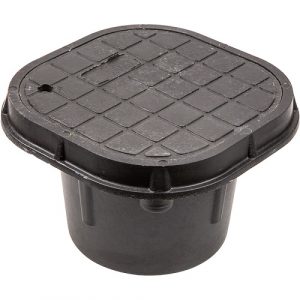

Earth pit 290x290x190 mm Features: For use in grounding and lightning systems. Specifications: Material: PVC Safe working load: 5000kg. Size: 290x290x190 mm. Weight: 2.5kg.
Drilling head M18 Features: Drilling head made from high strength steel alloy, inside thread and thread of ground rod stick together, can effectively protect the ground rod in a deep hurt. Used for ground rod bottom drill deep. Connection is threaded, screw type M18. For use in grounding and lightning systems. …
Driving Head, M18 Features: Driving head, steel. Full-threaded bolt with internal hexagon screw. Bolt grade 12.9, made of high strength steel alloy, reusable. Suitable for heavy-duty construction, metal-to-metal bolting, have high tensile and yield strength. It has excellent stability at high or low temperatures and provides resistance from various chemical and physical reactions.…
Earth clamp 3/4″ Features: Earthing clamp with fixing screw, made of brass. Bolt thread 3/4″, hexagonal head hex 14mm. Bolt strength class is 4.8.Function: connecting ground rod to ground cable.Screw type 3/4″.For use in grounding and lightning systems.Specifications: Material: brass.Screw type: 3/4″.Head: hex 14mm.Bolt grade: 4.8.Inner diameter: 19mm.Size: 50x27x21mm.Weight: 80g.
