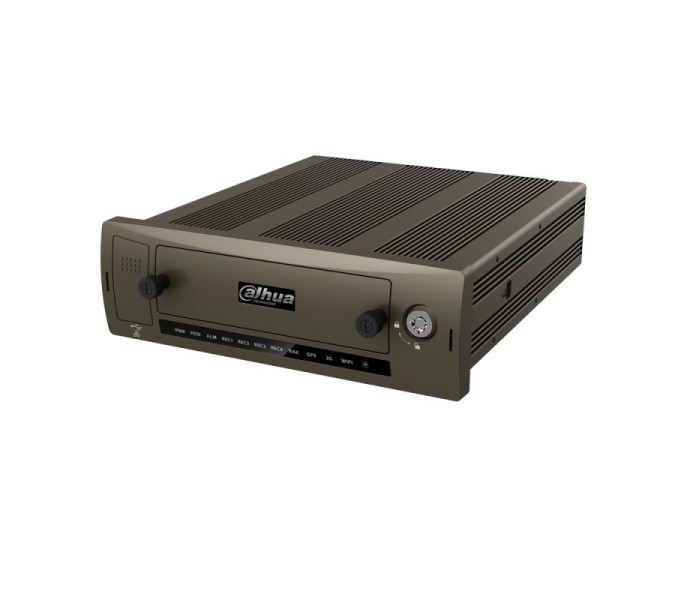

Mobile IP Network rec. 4 ch.MNVR1104-GFW

· Up to 4 channel with 1080P realtime live view
· H.264 dual-stream video compression
· VGA/TV simultaneous video output
· Support 1 SATA HDD, 2 USB2.0
· Aviation connectors adopted
· ONVIF Version 2.3 conformance
· Multple monitoring: Web viewer, CMS(DSS) & DMSS, Watermark

Technical Specification
System
· Main Processor Embedded microprocessor
· Operating System Embedded LINUX
Audio and Video
· IP Camera Input 4 Channel
· Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
· Interface 1 VGA, 2 TV
· Resolution 1920×1080, 1280×1024, 1280×720, 1024×768,800×600
· Display Split 1/4
· Privacy Masking 4 rectangular zones (each camera)
· OSD Camera title, Time, Video loss, Camera lock, Motiondetection, Recording
Recording
· Video/Audio Compression H.264/G.711A
· Record Rate Max 100 Mbps
· Bit Rate 48~8192Kb/s
· Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm),Stop
· Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~600 sec
Video Detection and Alarm
· Trigger Events Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips
· Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
· Alarm input 7 channel
· Relay Output 2 channel
· Playback and Backup
· Playback 1
· Search Mode Time/Date, Alarm, Motion Detection & Exact search (accurate to second)
Playback Function
· Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom, Picture playback
· Backup Mode USB Device/Network
Storage
· Internal HDD 1 SATA Ports, Up to 2 TB capacity
· SD card 1 SD card, Up to 128 GB
Network
· Ethernet RJ-45 Port (10/100 Mbps)
· PoE Port 4 ports(IEEE802.3af/at)
· Wireless Network Built-in 3G/4G/Wi-Fi module(optional)
· GPS Built-in high accurate GPS module(optional)
· Network Function TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server
· Max. User Access 128 users
· Smart Phone iPhone, iPad, Android
Auxiliary Interface
· USB 2 Ports (1 rear), USB 2.0
· RS232 1 Port, for PC Communication and Keyboard
· RS485 1 Port, for PTZ Control
· CAN Support
· Heater Optional
· G-sensor Support
Electrical
· Power Supply DC 6V~36V
· Power Consumption <15W (Without HDD) Environmental · Operating Conditions -30°C (with heater)~ +60°C (+14°F ~ +131°F), 0~95%RH · Storage Conditions -30°C ~ +70°C (-4°F ~ +158°F), 0 ~ 95% RH Construction · Dimensions 178mm×220mm×50mm (7.0" x 8.7" x 2.0") · Net Weight 2.1kg (4.6 lb) (without HDD) Certifications · CE FCC · EN50155 ISO16750 · E-mark
