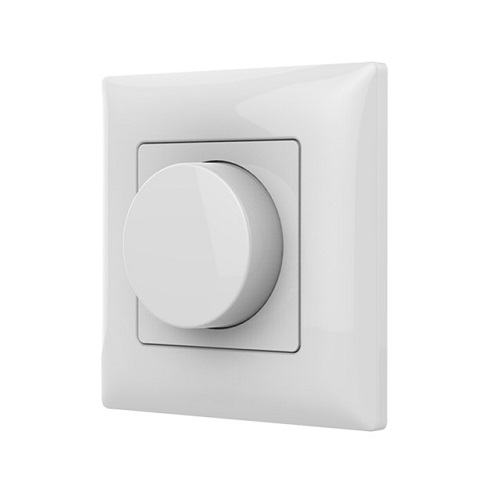

PK1 RF Remote Control, Single Color, 1 Zone

RF remote controller for LED strips with rotary dimming, single color, 2.4GHz, 1 zone, with mechanical knob, supports 50 lighting levels control.


Features:
Supports lighting systems: single color.
Allows you to smoothly dim or brighten the lighting. Compatible with dimmable LED strips/bulbs.
The rotating wheel allows you to conveniently turn the light on/off and adjust the brightness of the illumination in 50 levels.
A long press of the knob allows you to adjust the brightness of the illumination in 256 levels.
The operating frequency of the RF remote control is 2.4GHz, which ensures a stable signal at a distance of up to 30m, it is less disturbed by obstacles such as walls, partitions, etc.
Convenient design, can be removed from the frame or mounted on the wall as a switch.
The control regulator is universal, it can work with various LED controllers.


Technical data:
Product model: PK1.
Compatibility: Skydance V1, V1-L, V2-L, V3, V3-L, V3-X, V4, V5.
Number of zones: 1.
Controlled lighting systems: single color.
Operating frequency: RF 2.4GHz.
Operating current: <5mA.&#x4;
Standby current: <10uA.&#x4;
Operating distance: up to 30m.&#x4;
Power supply: 3V DC 1x CR2032 battery (included).&#x4;
Buttons: 1 (rotary and pressing) knob.&#x4;
Safety class: IP20 (not waterproof).&#x4;
Bracket installation: external (with 2 screws/sticker).&#x4;
Certificates: CE, EMC, LVD, RED, RoHS.&#x4;
Operating temperature: -30~+55°C.&#x4;
Dimensions: 86 x 86 x 23 mm&#x4;
Color: white.&#x4;
Weight: 60g.&#x4;

&#x4;
Complete set: control regulator, 1x battery, 2x bracket fixing screws, adhesive tape, user manual.&#x4;

&#x4;
Warranty: 24 months.&#x4;
