Description

Certification CE DoC
Operating relative humidity (H-H) 0 – 95%
Storage temperature (T-T) -20 – 60 °C
Scanner type 1D
Connectivity technology Wired
Housing material Plastic

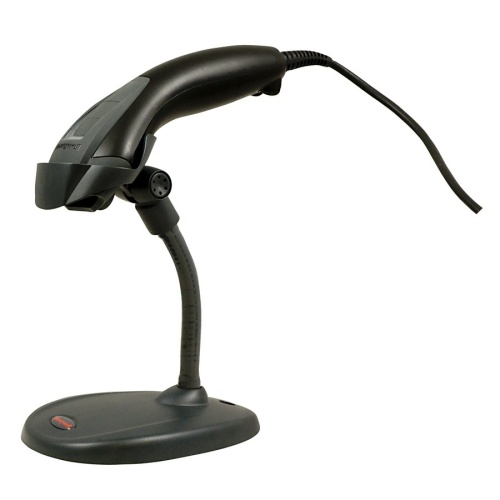

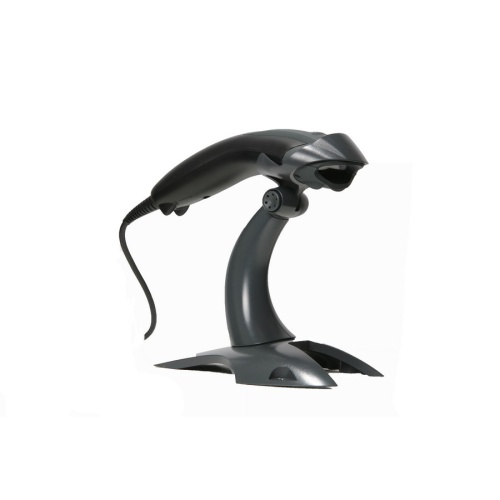

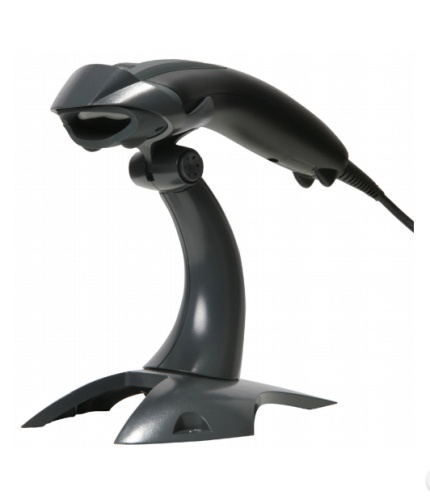

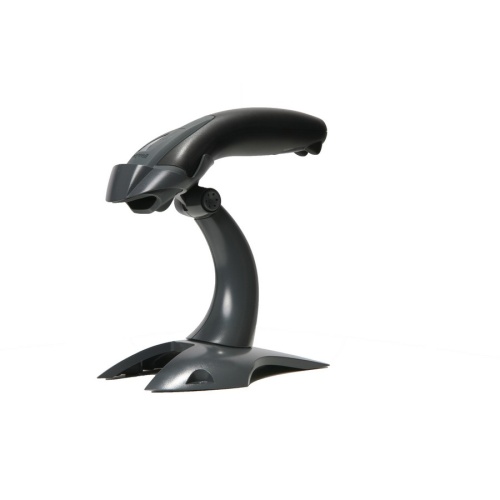

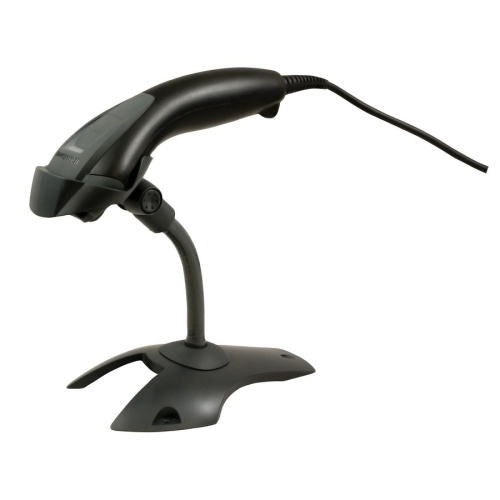

Type Handheld bar code reader
Product colour Black
Width 180 mm
Depth 66 mm
Height 97 mm
Weight 125 g
Operating temperature (T-T) 0 – 50 °C
Harmonized System (HS) code 84716070
Power consumption (standby) 0.35 W
Standard interfaces RS-232, USB, Keyboard wedge
Input voltage 5 V
Power consumption (typical) 0.7 W
LED indicators Power
Power source type USB
Sensor type Laser
Light levels (direct sunlight) 0 – 70000 lx
2D (matrix & stacked) barcodes supported
Pitch reading angle 60 – 60°
Read rate (max) 100 reads/s
Shockproof Yes
Linear (1D) barcodes supported GS1-128 (UCC/EAN-128)
