Description

Certification CE, RoHS
Operating relative humidity (H-H) 10 – 90%
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 5 – 95%
Cables included AC
Quick start guide Yes
AC input voltage 220 V
AC input frequency 50 Hz
Housing material Metal
Power source DC
Product colour Black

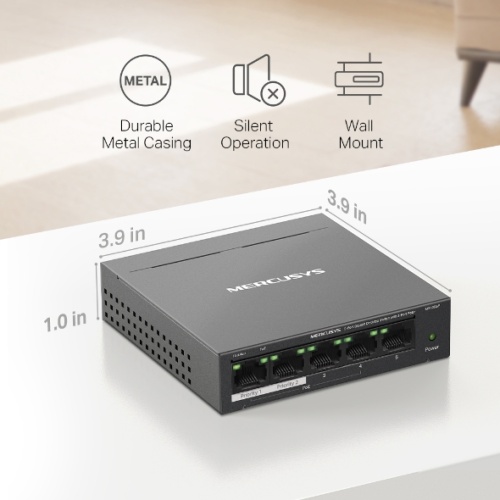

Width 99.8 mm
Depth 98 mm
Height 25 mm
Operating temperature (T-T) 0 – 40 °C
Power consumption (typical) 3.13 W
LED indicators Yes
Power consumption (max) 75.15 W
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Wall mountable Yes

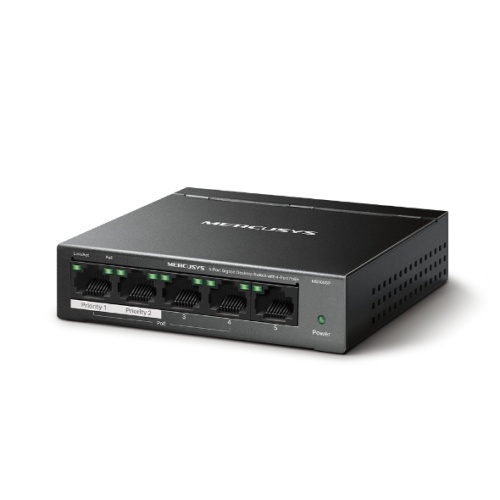

Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
10G support
Flow control support Yes

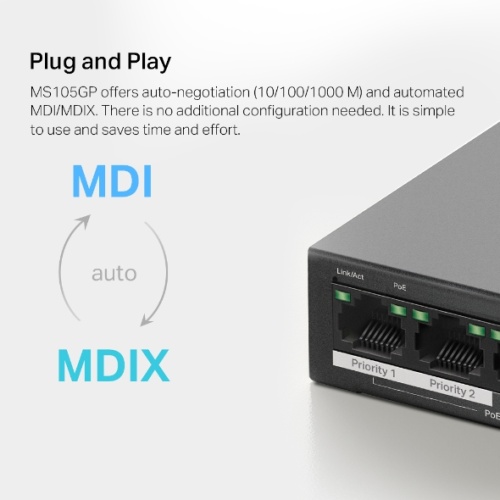

Auto MDI/MDI-X Yes

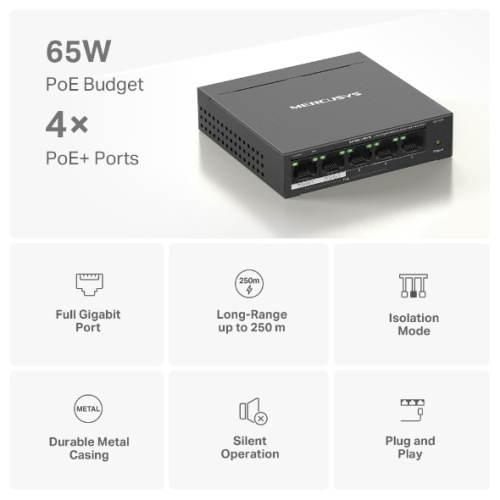

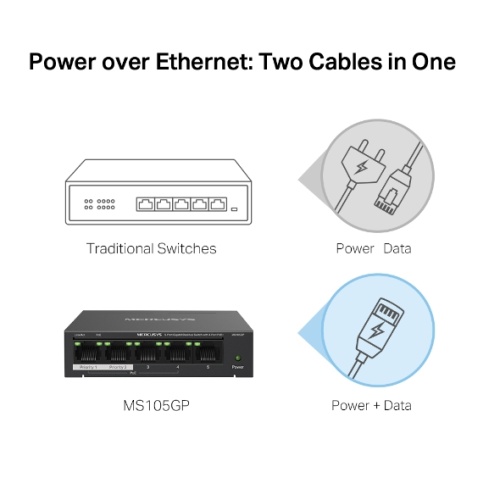

Power over Ethernet (PoE) Yes
MAC address table 2000 entries
Jumbo frames support Yes
Jumbo frames 9
Rack mounting No
Power supply included Yes
Full duplex Yes
Auto-negotiation Yes
