Description

What This Product Does

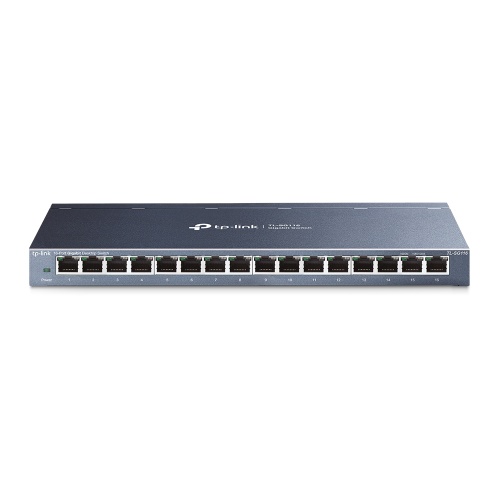

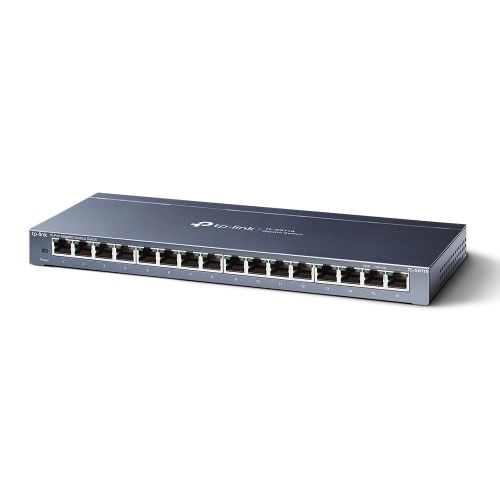

The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.

Operating relative humidity (H-H) 10 – 90%
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 5 – 90%
Cables included AC
Quick start guide Yes
AC input voltage 220 V
AC input frequency 50 Hz
Housing material Metal
Product colour Black
Width 286 mm
Depth 111.7 mm
Height 25.4 mm
Operating temperature (T-T) 0 – 40 °C
Harmonized System (HS) code 85176990
Input current 0.6 A
LED indicators Yes
Power consumption (max) 9.3 W
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wall mountable Yes
Switch type Unmanaged
Quality of Service (QoS) support Yes
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (copper) ports quantity 16
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support Yes
Port mirroring Yes
Rate limiting Yes
Flow control support Yes
Link aggregation Yes
Auto MDI/MDI-X Yes
Power over Ethernet (PoE) No
