Description

Certification EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1
2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-
1-07
Operating relative humidity (H-H) 5 – 95%
Storage temperature (T-T) -40 – 70 °C
Scanner type 1D/2D
Connectivity technology Wired & Wireless
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 2400 mAh
Bluetooth version 4.0
International Protection (IP) code IP42
Sustainability certificates RoHS

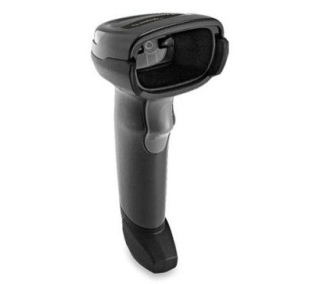

Type Handheld bar code reader
Product colour Black
Width 66 mm
Depth 90 mm
Height 175 mm
Weight 214 g
Built-in display No
Operating temperature (T-T) 0 – 50 °C
Harmonized System (HS) code 84716070
Standard interfaces Bluetooth, USB
Number of batteries supported 1
Input voltage 4.5 – 5.5 V
LED indicators
Power source type Battery, DC
Bluetooth Low Energy (BLE) Yes
Battery life 84 h
Sensor type LED
Working distance 36.8 cm
Wavelength 645 nm
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
Pitch reading angle -65 – 65°
Motion tolerance (cm/s) 13
Tilt reading angle -65 – 65°
