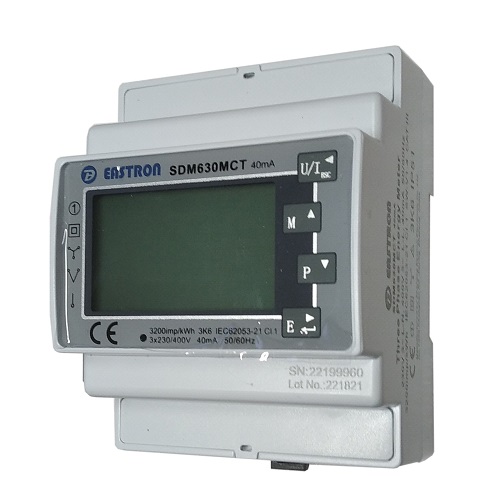

PV Smart Meter GROWATT TPMCTE100A, 100A

PV smart meter 100A, 3-phase, with RS485, Modbus, 3P4W
Features:
The smart meter is designed for grid export limitation and self-consumption monitoring.
Compatible with Growatt PV inverters.
Class1 measurement reliability.
With LCD display.
Smart Meter is easy to mount on Din rail.


Specifications:
Rated voltage: AC 230/400V.
L-L voltage range: AC 173 ~ 480V.
L-N voltage range: AC 100 ~ 289V.
Current: 100A.
Frequency: 50/60Hz.
Number of phases: 3.
Accuracy class: class 1 (voltage/current 0.5%, power 1%, frequency 0.2%).
Interface: RS485.
Baud rate 9600 bit/s.
Communication protocol: Modbus RTU.
Installation: on DIN rail 35mm.
Dimensions: 95.5x72x65 mm.
Safety class: IP51.
Operating temperature: -25°C to 55°C.
Operating humidity: 0-90% non-condensing.
Weight: 280g.
Colour: white.
Certifications: CE.
Consumption: 2W.
RS485 cable length: 15m.


Warranty: 24 months.

Download Quick Guide TPMCTE.pdf
