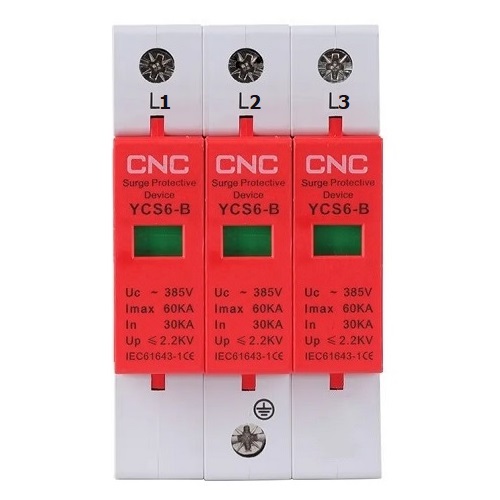

Surge Protection Device, 3P, Class B, 30-60 kA, 385VAC

Surge Protection Device, 3P, Class B, 30-60 kA, 385VAC

34,20 €

5 in stock
  • Disc Estimated Delivery : 1-2 business days
  • Disc Free Shippings : orders over €300
  • Disc Delivery by courier: €3.90
  • Disc Purchase option Only On-line
SKU: NV821709 Category: Brand:

Surge Protection Device, 3P, Class B, 30-60 kA, 385V

Features:
Intended to protect electrical devices from voltage spikes, which can arise from a variety of causes including lightning strikes in the vicinity.
The product is usually installed in the incoming line low voltage distribution box of the building, and it can release 100kA lightning stroke current.
Suitable for systems: TT, IT, TN-S, TN-C, TN-C-S.
Standards: IEC 61643-1, GB18802.1, GB50057, CE.


Specifications:
Number of contacts: 3.
Class: B.
Maximum continuous operating voltage (Uc): 385 V AC.
Maximum discharge current (Imax): 60 kA.
Nominal discharge current (In): 30 kA.
Voltage protection level (Up): < / = 2.2 kV. Response time: <25 ns. Frequency: 50/60 Hz. Operating temperature: -40°C to +85°C. Relative humidity (at 25°C): <95%. Installation: on DIN rail (35mm). Wires cross-section: up to 6-10 mm². Dimensions: 54 x 90 x 67 mm.

Warranty: 24 months.
