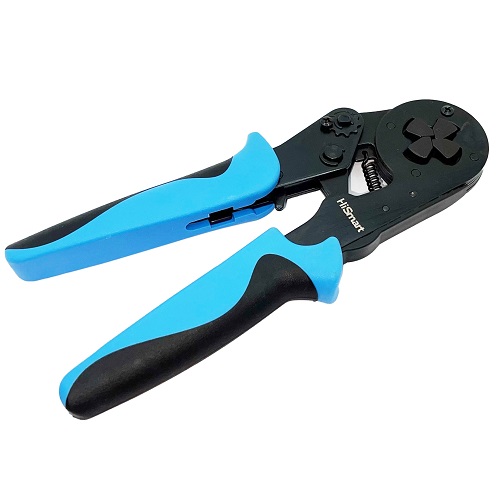

Terminal Crimping Tool 6-16mm2

Self-Adjusting Crimping Pliers for wire end sleeves with lateral access, square crimping.


Features:
Narrow handle width and improved ergonomics.
Optimum transmission of force due to toggle lever for fatigue-reduced operation.
High operation comfort thanks to handy shape and low weight
Square compression, lower grip width.
Self-adjustment to the size of wire end sleeves required.
Suitable in particular for all twin wire end sleeves up to 6 – 16 mm² or AWG 10-5.
Easy handling through self-setting to the sleeve size.
Possibility to lock / unlock consistently high crimping quality (self-releasing mechanism).
Crimp pressure is precisely set (calibrated) in the factory.


Specification:
End sleeves (ferrules): 6-16 mm², 10-5 AWG.
Length: 200mm.
Weight: 540g.
Material: chrome vanadium electric steel in special quality, oil-hardened.


Warranty: 24 months.
