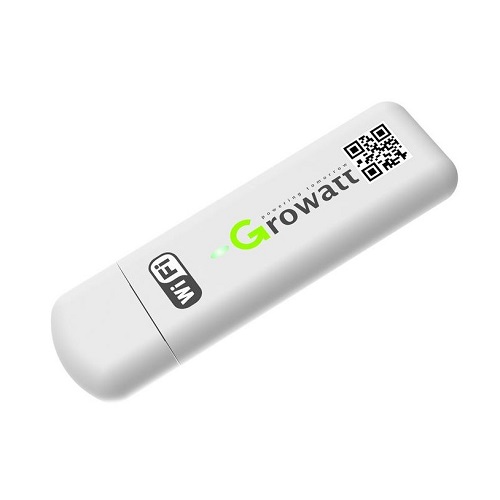

Wi-Fi Interface GROWATT USB WiFi

Wi-Fi Interface Growatt USB WiFi


Features:
This USB port is used for connecting the solar inverter in order to upload and process the inverter’s data to the ShinePhone app by Wi-Fi, such enabling monitoring the operation of the solar power plant and produced energy.
The USB dongle connects to the solar inverter and allows you to install the app, for device configuration and local firmware update.
After commissioning, the dongle can be taken used for the next installation.
Suitable for Growatt inverters MIC 750-3000TL-X, MIN 2500-6000TL-X/XE/XH, MOD 3-15KTL3-X, MID 6-12K TL3-XL, MID 15-20KTL3-X, MID 25-40KTL-X, MAC 30-60KTL3-X LV, MAC 50-70KTL3 MV, MAX 50-80KTL3 LV, MAX 60-100KTL3 MV and more.


Technical specifications:
Supported network: Wi-Fi 2.4GHz (2412-2484MHz).
Max. communication range: 30m.
Wi-Fi wireless standard: IEE802.11 b/g/n.
Max. bandwidth: 150Mbps.
Power: 5V.
Interface: USB Type-A.
App: ShinePhone.
Dimensions: 82x25x10 mm.
Weight: 60g.


Warranty: 12 months.

Download Local-USB-WiFi-configuration.pdf
