Description

What This Product Does

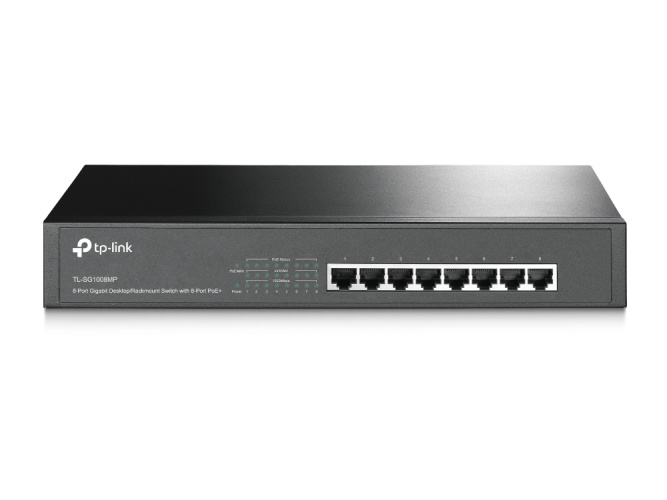

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.

Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.

Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

Certification FCC, CE, RoHS
Operating relative humidity (H-H) 10 – 90%
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 5 – 90%
Cables included AC
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Pallet gross length 1 mm
Pallet gross width 1 mm
Master (outer) cases per pallet layer 1 pc(s)
Product colour Black
Width 294 mm
Depth 180 mm
Height 44 mm
Operating temperature (T-T) 0 – 40 °C
Harmonized System (HS) code 85176990
User guide Yes
Power consumption (typical) 140.1 W
Mean time between failures (MTBF) 1 h
Power consumption (max) 144.4 W
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Commodity Classification Automated Tracking System (CCATS) 11
Switch type
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
10G support No
Auto MDI/MDI-X Yes
Power over Ethernet (PoE) Yes
MAC address table 4000 entries
Store-and-forward Yes
Packet buffer memory 1.5 MB
Rack mounting Yes
Power supply included Yes
