Description

Lightning-Fast Connection with Full 10GE Ports

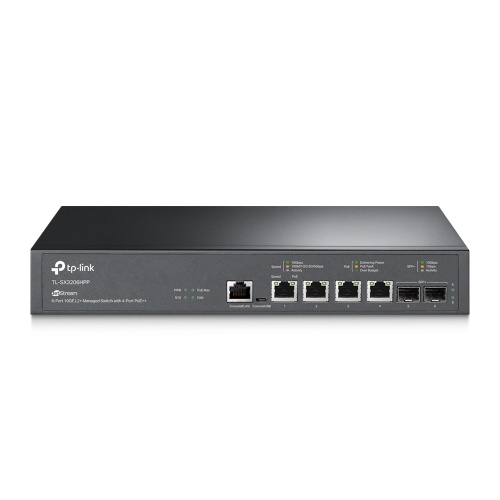

Build and expand your lightning-fast network with TP-Link TL-SX3206HPP—a fully managed switch with full 10GE RJ45 and fiber ports and 120 Gbps switching capacity. The four 10GE RJ45 ports with auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance. Two 10GE SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches can be easily constructed.

Empowering the Real WiFi 6 and WiFi 6E with 10G PoE++ Ports
Four 10GE RJ45 ports offer 802.3bt PoE++ to provide up to 200 W PoE power budget in total and 60 W for every port. It unlocks the full bandwidth potential of WiFi 6 and WiFi 6E access points and high power PoE devices.† PoE (802.3af), PoE+ (802.3at), and PoE++ (802.3bt) are supported, so you don’t need to install new electrical circuits to power your devices.

Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campus, and ISPs.

Certification CE, FCC, RoHS
Package width 400 mm
Package depth 250 mm
Package height 80 mm
Package weight 2.62 kg
Operating relative humidity (H-H) 10 – 90%
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 5 – 95%
Cables included AC
Quick start guide Yes
AC input voltage 100 – 240 V
AC input frequency 50/60 Hz
Power source AC
Product colour Black
Width 294 mm
Depth 180 mm
Height 44 mm
Operating temperature (T-T) 0 – 50 °C
Harmonized System (HS) code 85176990
Security algorithms HTTPS, SSL/TLS
Management protocols SNMP v1/v2c/v3
LED indicators Yes
Power consumption (max)
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Web-based management Yes
Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Yes
Basic switching RJ-45 Ethernet ports quantity 4
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
10G support Yes
VLAN support Yes
Port mirroring Yes
