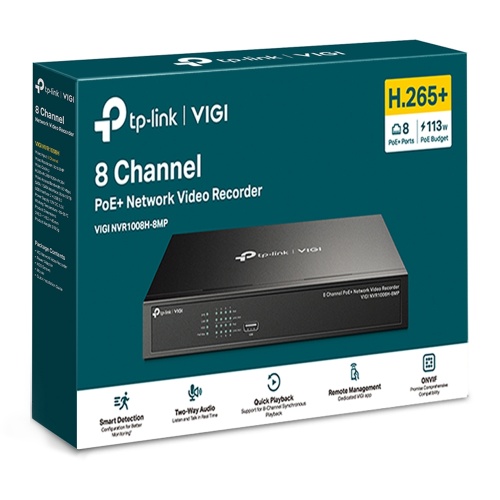

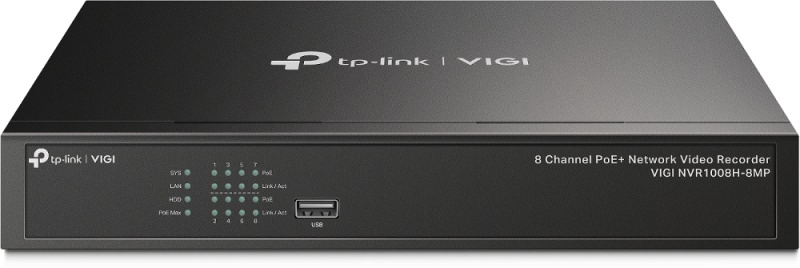

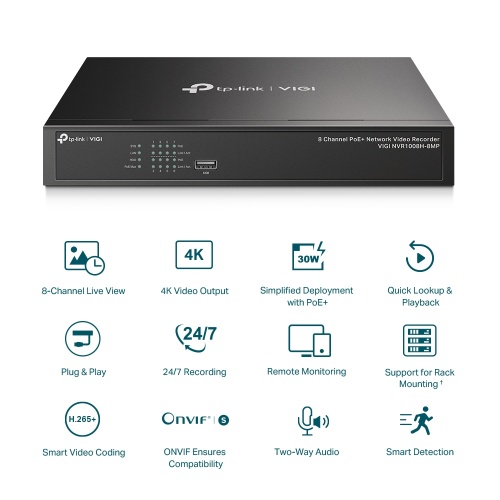

VIGI NVR1008H-8MP 8 Channel PoE+ Network Video Recorder

Every angle all on one screen.

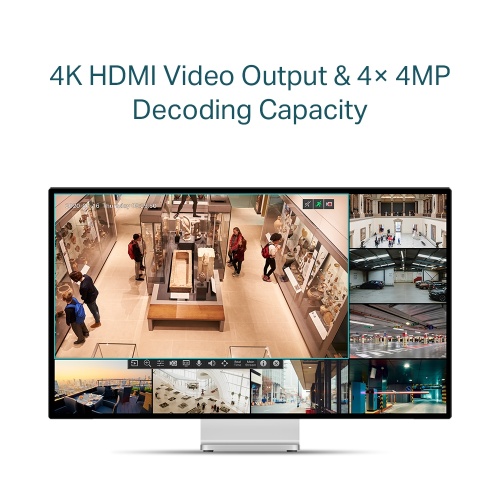

4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle.

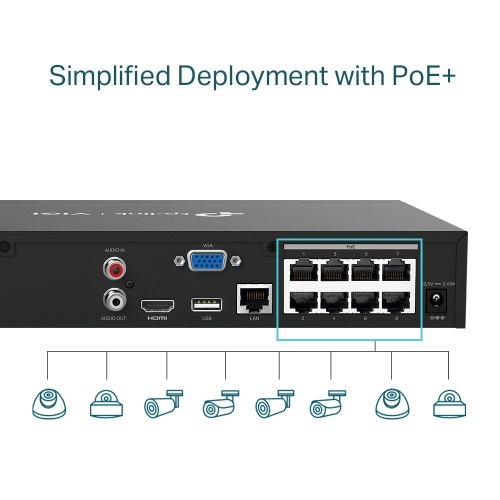

Dedicated 8 PoE+ ports (113 W budget) for simplified IP camera deployment.

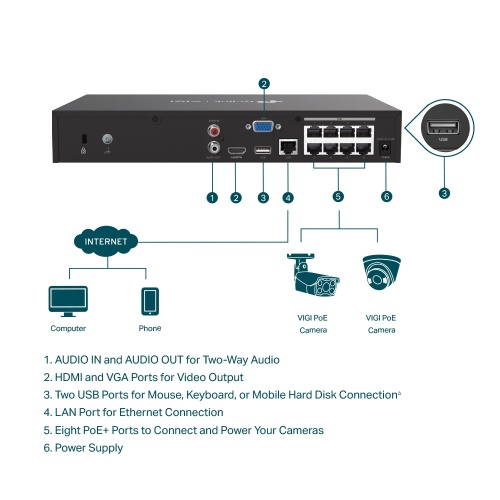

Features 8× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.

Reviewing footage is faster than ever.

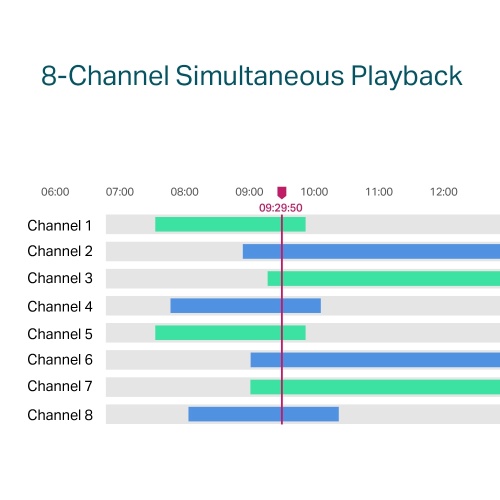

8-Channel Simultaneous Playback
Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

No need to check long compatibility lists.
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

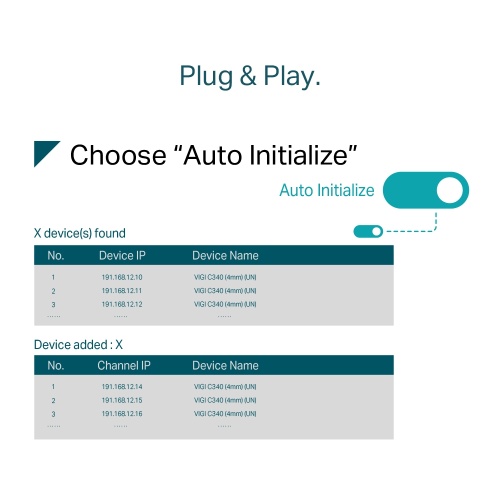

Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.

Security for every hour and every day.
24/7 Continuous Recording
Stores up to 10 TB of footage from managed cameras to secure your data for quick, convenient access.

Keep an eye on things even when you are on the move.
Remote Monitoring
The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.

Flexible installation gives you more convenience.
Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk.

Greet your visitors before they enter.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Package width 250 mm
Package depth 400 mm
Package height 80 mm
Package weight 2.1 kg
Wi-Fi No
USB 2.0 ports quantity 2
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
Product colour Black
Width 294 mm
Depth 180 mm
Height 44 mm
Maximum resolution 3840 x 2160 pixels
Operating temperature (T-T) -10 – 55 °C
Output current 2.43 A
Power consumption (typical) 4.82 W
Supported network protocols TCP/IP, DHCP, DNS, NTP, UPnP
LED indicators Yes
Video formats supported H.264, H.264+, H.265, H.265+
Output voltage 53.5 V
Resolution at capture speed 1280×720@60fps, 1920×1080@60fps, 3840×2160@30fps
Video recording modes 720p, 1080p, 2160p
Total Power over Ethernet (PoE) budget
Maximum storage capacity 10 TB
Audio RCA inputs 1
HDD capacity 0 GB
Video input channels 8 channels
Alarm input channels 8
Alarm output channels 1
Supported resolutions 3840×2160,1920×1080, 1680×1050, 1440×900, 1280×1024, 1024×768, 1280×720
Input bandwidth 80 Mbit/s
Output bandwidth 60 Mbit/s
HDD interface SATA
