Description

Operating relative humidity (H-H) 10 – 90%
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 5 – 95%
Cables included AC
Quick start guide Yes
AC input voltage 220 V
AC input frequency 50 Hz
Housing material Metal
Power source AC
Product colour Black

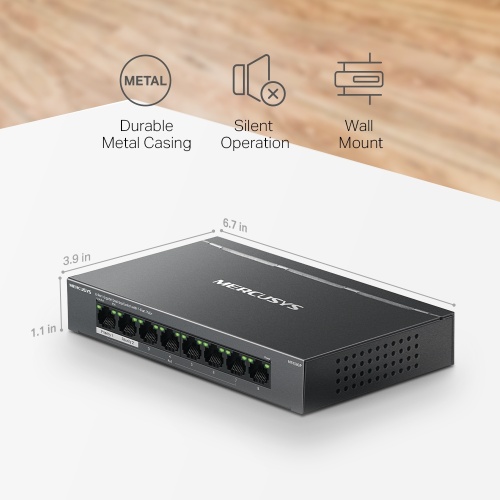

Width 171 mm
Depth 98 mm
Height 27 mm
Operating temperature (T-T) 0 – 40 °C
Input voltage 53.5 V
Input current 1.31 A
Power consumption (typical) 5.07 W
Power consumption (max) 77.33 W
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Web-based management Yes
Wall mountable Yes
Switch type Managed
Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
10G support No
Flow control support Yes

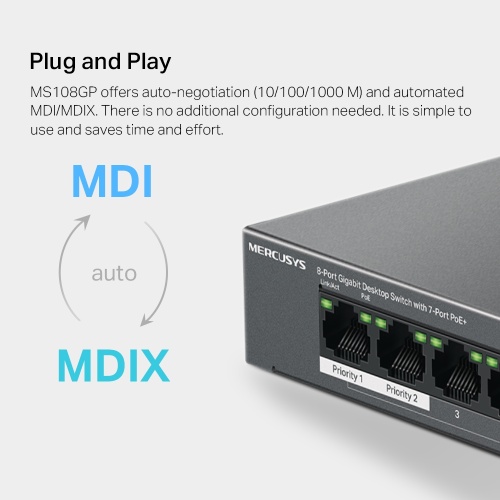

Auto MDI/MDI-X Yes

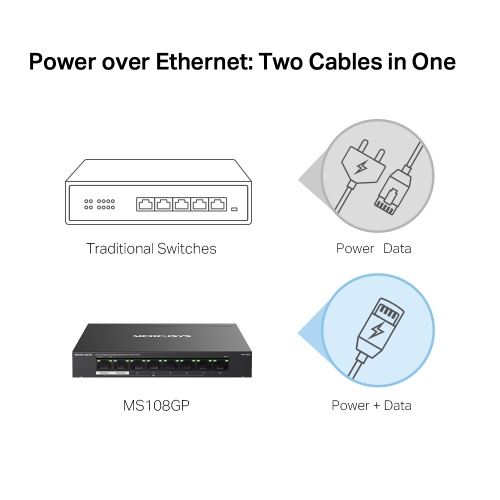

Power over Ethernet (PoE) Yes
MAC address table 8000 entries
Store-and-forward Yes
Rack mounting No
Power supply included Yes
Heat dissipation 262.922 BTU/h
